Merk : PT

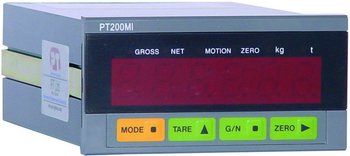

Type : PT200MI
Untuk memenuhi kebutuhan dan menemukan solusi Indikator timbangan anda segera hubungi kami :
Tlp. 0811-8686-598
Hp. 0812-1006-7998
WA. 0812-1006-7998
Pin BB : 5eb87b6b
E-mail : cvgms@yahoo.com
dan kami PASTI memberikan :
1. Harga Lebih Murah + Discount Tambahan Yang Menarik
2. Indikator Yang Berkualitas
3. Gratis Biaya Pengiriman
4. Jaminan/Garansi 1thn
SPECIFICATIONS :
| Power-Supply (Selectable) Power Consumption Line Filter Load Cell Type Load Cell Supply . . Input Sensitivity (Selectable) Hi/Lo or Control Output* . Zero adjustment range Scale range Step Width Maximum Display Resolution Display Display Up-Date Rate (Selectable) |
110V or 220V AC, 50/60 Hz 9VA Built-in All strain gauge type 10V DC, 150mA, reduces to 120mA with 4-20mA output option (4x 350Ω, 8x 700Ω load cells) 0.5µV/D to 200µV/D Photo-coupled 80V DC max 0.3A 0.05mV - 15mV 500 ~ 100,000 1, 2, 5, 10, 20 or 50 10,000 divisions 13mm LED display (6 digits) 1, 4, 8, 16 or 20 per second |
BCD* Output Rate (Selectable) RS232/RS485 Port* . . Units Relative Humidity Operating Temperature Range Temperature Coefficient Non-linearity Dimensions Conversion Rate Internal Resolution Supplied Accessories Net Weight Analogue Output* (* Options purchased separately) |
4, 8, 16, 20, 60, 80 or 100 Bi-directional, 2400, 4800, 9600 or 19200 baud 7 data bit, even parity,1 stop bit kg/t selectable 90% Non-condensing -5 ~ 50°C (23 ~ 122°F) 8ppm / °C of FSD 0.005% FSD 144mm(L) x 96mm(W) x 48mm(H) 200 times/second (max) 16,700,000 Instruction Manual 450gms approx 0-5V, 4-20mA, 0-20mA |
